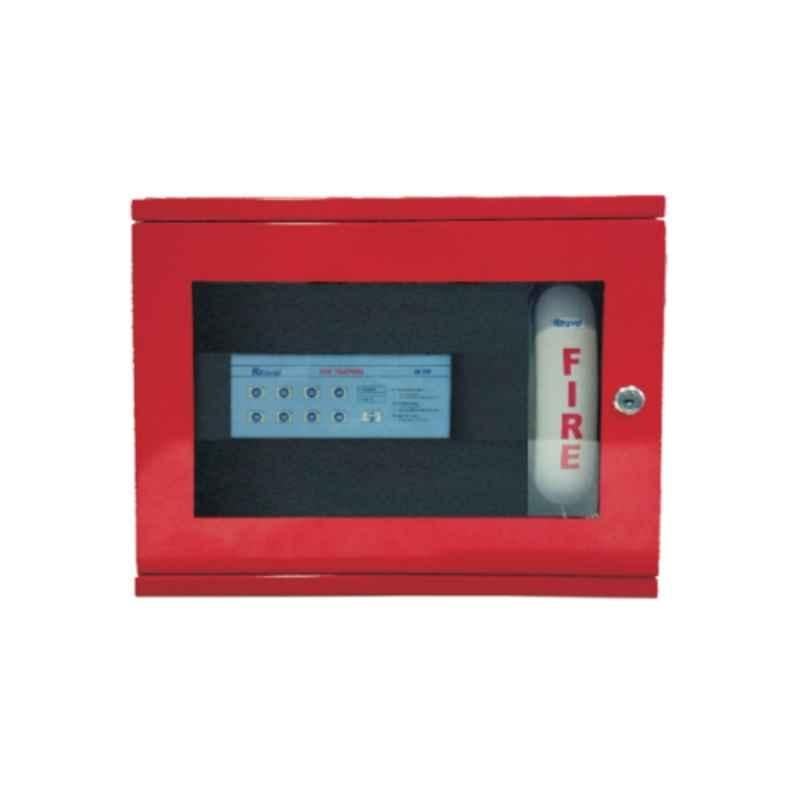

About Ravel 220V 8 Zones Fire Fighter Telephone System, EK-740

Key Features

Remotes Connected Via 2 Core Radial

Master to Remote and Remote to Master Calling Facility

Conference Call Facility & Complies with Bs5839 Pt 9 2002

Fully Monitored for Open and Short Circuit Cable Failures

Product Specification

Brand	Ravel
DigiMRO Item Code	REFEK740
Operating Temperature	0 to 49 deg C
Battery Capacity	7 Ah
Number of Batteries	2
Battery Voltage	12 V
Voltage	Primary: 220 V AC
Additional Details	Max No of Zones: 8
Current	DC Output: 24V at 100 mA
Notes	Images are for Reference Purpose only, Actual Product May Vary
Item Code	EK-740

Product Details

Introducing the Ravel 220V 8 Zones Fire Fighter Telephone System, EK-740, part of the Conventional Panel range by Ravel. This versatile system is designed to operate in temperatures ranging from 0 to 49 degrees Celsius. With a maximum of 8 zones, the EK-740 offers a reliable solution for fire safety communication. The current DC output of 24V at 100 mA ensures efficient power supply, while the 7 Ah battery capacity and 12V battery voltage provide backup power in case of emergencies. The item code for this product is EK-740. Please note that the images provided are for reference only and the actual product may vary.
